NS-6040GH-01A

ELECTRONIC PATTERN SEWING MACHINE

NS-6040GH-01A

Accurate sewing based on sewing data!

NS-6040GH-01A PRODUCT FEATURES

Large sewing area to achieve multifunction sewing

The sewing area is 600x400mm. Can sew bags and airbags and other large sewing products, but also sewing shoes and clothing at the same time a number of small objects.

Beautiful stitch

Accurate position, while using the feeding device controlled by servo system, machine can sew high-precision pattern. Even if high speed sewing there is no positon off caused.Also equipped with a strong motor(750W), even in a low-speed sewing can also get a strong penetration, including thick fabric.

Low power consumption

Direct drive mode can reduce the energy loss during transmission, but also uses a small energy-saving motor.

Using large-capacity memory

The sewing machine can store a large amount of sewing data (999 patterns, 200,000 Stitches) in its memory. Easy to correspond to different sewing patterns.

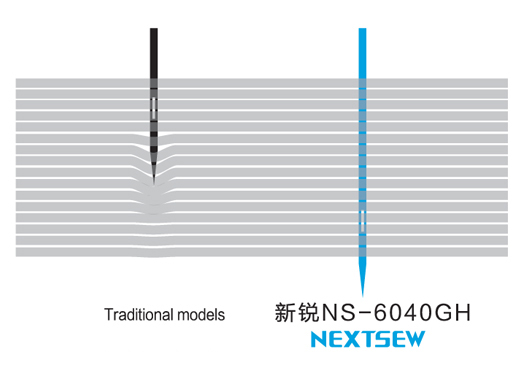

Strong penetration

Use the "NS600" programming software

Can be quickly and easily edit the patterns, but also compatible with "VDT, SEW" and other format patterns, modify the pattern is more simple, according to icons and commands, easy to create sewing data.

NS-6040GH-01A Application Example

NS-6040GH-01A Ordering Instruction

SPECIFICATIONS

  • NS-6040GH-01A
Using
Flat-stitching pattern sewing machine(2-time hook)
Stitch
Single-needle flat stitch
Highest sewing speed
2,800 rpm
Sewing area (XxY)
Max.(mm) 600x400
Cloth feeding device
Intermittent feeding (driven by pulse motor)
Stitch length
0.05 - 12.7mm
Maximum needle number
20,000 stitches/1 pattern
Presser foot drive
Pulse motor drive
Work clamp height
-0□S:maximum 25 mm -0□A:maximum 30 mm
2-step presser foot
-0□S:integrated presser foot -0□A:divided presser foot
Height of intermittent presser foot
22 mm
Stroke of intermittent presser foot
0 or 2 - 10 mm(Factory setting:3mm)
Hook
Hook (standard hooks are options)
Thread wipe device
Standard
Thread trimmer device
Standard
Data storage
Standard USB interface, U disk storage
Motor
AC servomotor 750W
Weight
Head:about 88 kg Operating panel:about 0.6 kg
control box:14.2 - 16.2 kg(according to different countries)
Power
Single phase 220V, 3-phase 380V
Air pressure
0.5 Mpa 1.7 l/min
The above types are only for reference, and you can consult local distributors for details.
Specifications are subject to change for improvement without further notice. Please carefully read the operating manual before use for safety.
