Energy-saving, clean and durable！
NS-530H PRODUCT FEATURES
With black diamond bar and bearing thread take-up lever, through the solid oil micro-oil lubrication, to prevent the fabric oil, clean and durable.
Expand the available of stitching for thickness fabric
In the case of medium and thick material specifications, the stability of the stitch can be improved by improving the thread take-up. Expand the seam of the thick material sewing, and enhance the response force of the fabric.
Shortened length of sewing (short thread size)
By improving the trimmer structure, so that the length of the line shorter. The sewing thread after the work can be reduced.
Thread take-up with self-return
Self-return, efficient.
Support double pedal, left pedal and right pedal can be separated from the operation, sewing special products, positioning easier.

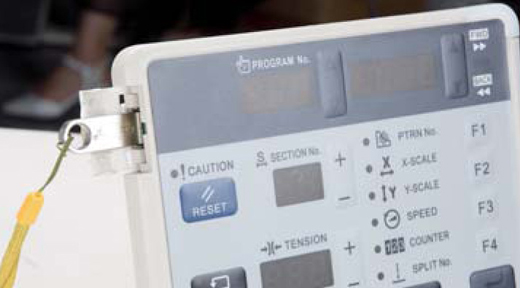

Support USB data interface
support USB data interface access, memory bigger, storage faster.
NS-530H Application Example
SPECIFICATIONS
Use
Bar tacking
Max. sewing speed
3200 rpm
Sewing area (X × Y)
Max. 40×30mm
Feed way
Intermittent feed (pulsed motor drive mode)
Stitch length
0.05-12.7mm
Max. number of stitches
5000 needle / 1 pattern
Oil supply
Micro-oil supply
Presser foot drive mode
Pulsed motor drive mode
Height of presser foot
Max. 17mm
Hooks
Semi - rotating standard rotary hook
Thread wipe device
Standard equipment
Trimmer device
Standard equipment
Thread catch
Option
Data storage
Flash card (using SD card can add any pattern)
External data storage medium
U Disk
Number of cycle programs
Max. Up to 30 (each 50 steps)
Storing data
Has set up 89 kinds of patterns (up to add up to 512 kinds of patterns, additional total needle number of about 500000 pin) * 2
Motor
AC servo motor 550W(Direct drive)
Power supply
Single phase 220V
Weight
Head: about 57kg, operation panel: about 0.4kg, control box: about 9kg
Use
Bar tacking / button attaching
Max. sewing speed
3200 rpm
Sewing area (X × Y)
Max. 40×30mm
Feed way
Intermittent feed (pulsed motor drive mode)
Stitch length
0.05-12.7mm
Max. number of stitches
5000 needle / 1 pattern
Oil supply
Micro-oil supply
Presser foot drive mode
Pulsed motor drive mode
Height of presser foot
Max. 17mm
Hooks
Semi - rotating standard rotary hook
Thread wipe device
Standard equipment
Trimmer device
Standard equipment
Thread catch
Option
Data storage
Flash card (using SD card can add any pattern)
External data storage medium
U Disk
Number of cycle programs
Max. Up to 30 (each 50 steps)
Storing data
Has set up 89 kinds of patterns (up to add up to 512 kinds of patterns, additional total needle number of about 500000 pin) * 2
Motor
AC servo motor 550W(Direct drive)
Power supply
Single phase 220V
Weight
Head: about 57kg, operation panel: about 0.4kg, control box: about 9kg
The above types are only for reference, and you can consult local distributors for details.
Specifications are subject to change for improvement without further notice. Please carefully read the operating manual before use for safety.
