NS-1310GH-01S

Electronic Pattern Sewing Machine With Solenoid Control

NS-1310GH-01S

High Speed, Beautiful Stitch Energy-saving.

NS-1310GH-01S PRODUCT FEATURES

Using the fourth-generation servo step drive technology

Stitch accurate, motor temperature stable, quick reaction

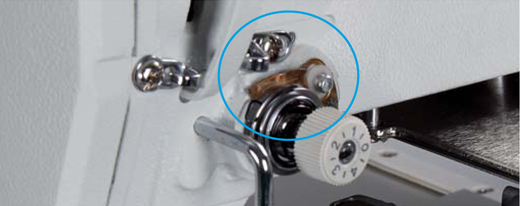

Thread breaking sensor

When the thread is broken, the sewing operation will stop automatically and alarm prompt.

The maximum speed is 2800rpm.

Comparing the normal pattern sewing machine, the production is 19% more.

Rectangular pattern: 60x99mm
Stitches:106 Stitch length:3mm

Low consumption and energy saving

Using drive, energy-saving motor, saving 50% energy.

Rectangular pattern:60x99mm Stitches:106
Stitch length:3mm Sewing speed:2,500 rpm,504 pieces/hour

Achieve a beautiful stitch with the minimum resolution of 0.05 mm

The input data can be set to a high resolution of 0.05 mm per pulse. The machine can even stitch the patterns as embroidery machine.

Positioning is simple and accurate

By switching the memory switch, the drop action of the foot can choose 2 steps down or 1 step down.

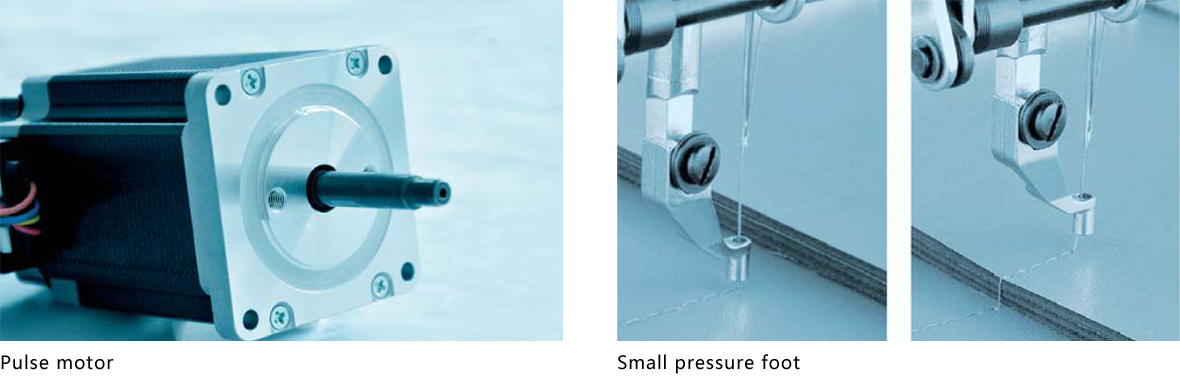

NS-1310GH-01S Function Extension

NS-1310GH-01S Application Example

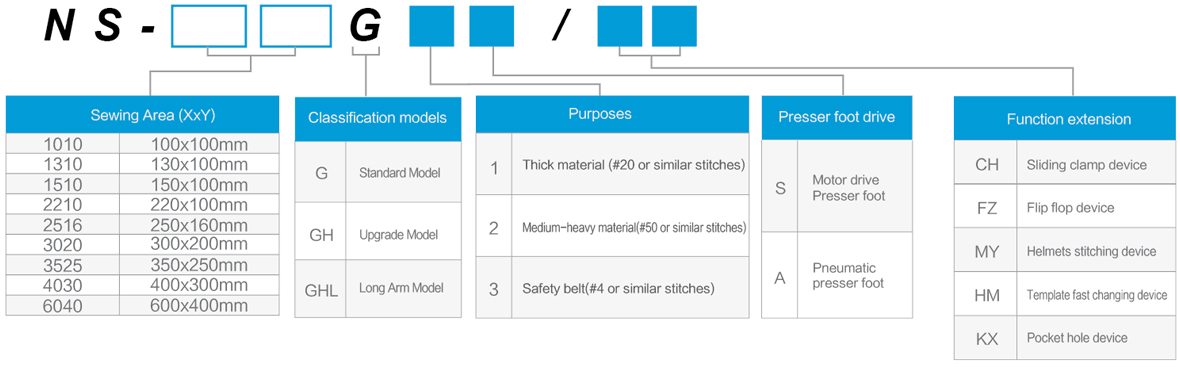

NS-1310GH-01S Ordering Instruction

SPECIFICATIONS

  • NS-1310GH-01S
Using
Flat-stitching pattern sewing machine(2-time hook)
Stitch
Single-needle flat stitch
Highest sewing speed
2,800 rpm
Sewing area (XxY)
Max.(mm) 130x100
Cloth feeding device
Intermittent feeding (driven by pulse motor)
Stitch length
0.05 - 12.7mm
Maximum needle number
20,000 stitches/1 pattern
Presser foot drive
Pulse motor drive
Work clamp height
-0□S:maximum 25 mm -0□A:maximum 30 mm
2-step presser foot
-0□S:integrated presser foot -0□A:divided presser foot
Height of intermittent presser foot
22 mm
Stroke of intermittent presser foot
0 or 2 - 10 mm(Factory setting:3mm)
Hook
Hook (standard hooks are options)
Thread wipe device
Standard
Thread trimmer device
Standard
Data storage
Standard USB interface, U disk storage
Motor
AC servomotor 750W
Weight
Head:about 88 kg Operating panel:about 0.6 kg
control box:14.2 - 16.2 kg(according to different countries)
Power
Single phase 220V, 3-phase 380V
Air pressure
0.5 Mpa 1.7 l/min
The above types are only for reference, and you can consult local distributors for details.
Specifications are subject to change for improvement without further notice. Please carefully read the operating manual before use for safety.
