NS-AT6502

ELECTRONIC BUTTON ATTACHING MACHINE

NS-AT6502

Accurate sewing based on sewing data

NS-AT6502 PRODUCT FEATURES

Applicable to all kinds of clothing button attaching.

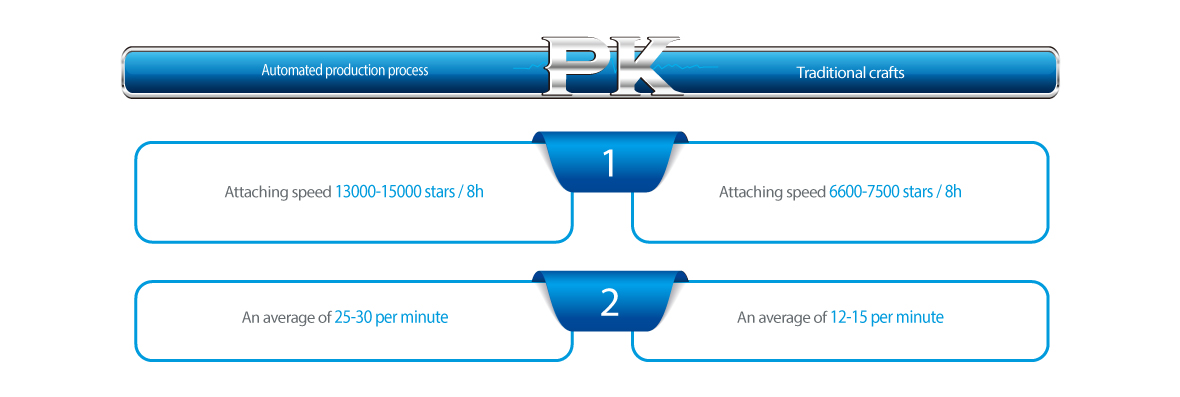

The maximum diameter of the button can reach 30mm, the average per minute can be nailed 25-30 buttons, greatly enhance the speed and efficiency of stapling.

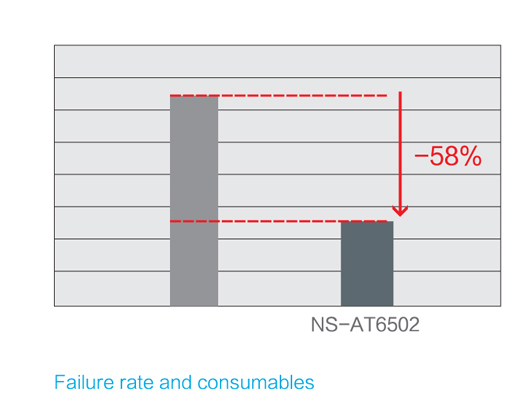

Using a digital control system; modular design to greatly reduce the failure rate and supplies.

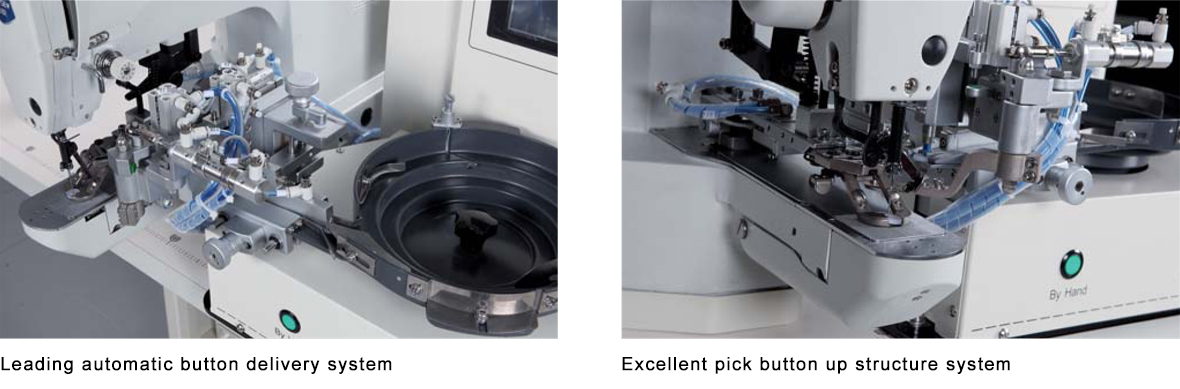

Developed a more powerful automatic high-speed delivery of smart devices, stable performance and higher efficiency.
Comfortable visual operation. Easily create sewing data according to icons and commands.

NS-AT6502 Application Example

SPECIFICATIONS

  • NS-AT6502
Sewing process
Automatically feeding
Voltage
220V
Rated power
50W
Air pressure
0.35-0.5Pa
Feeding stability
99.8%
Machine size
570x520x400mm
Weight
35kg
  • NS-438D / NS-438H
Stitch
Single-needle flat seam
Max. sewing speed
2700 rpm
Supply mode
Vibration plate supply
Supply time
0.4 seconds / month
Button type round flat buckle size
diameter 8-15mm
Button thickness
1.8-5mm
Motor
AC servo motor 550W direct drive type
Power supply
Single phase 200-240V
Air pressure
0.5Mpa
The above types are only for reference, and you can consult local distributors for details.
Specifications are subject to change for improvement without further notice. Please carefully read the operating manual before use for safety.
